5 Ton 64-37-0

Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.

Metric Units

Switch to Imperial Units

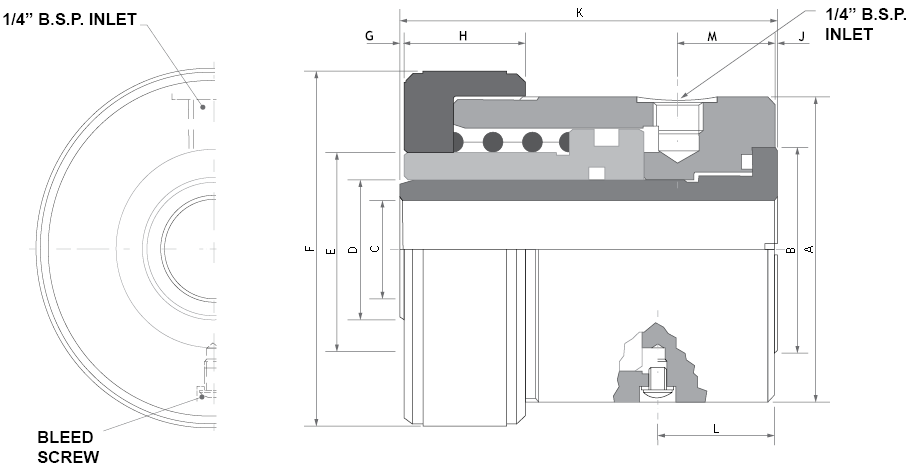

Dimension

Measurement

A

79.38mm

B

54.00mm

C

25.78mm

D

36.50mm

Dimension

Measurement

E

50.80mm

F

92.08mm

G

0.76mm

H

31.75mm

Dimension

Measurement

J

0.25mm

K

97.76mm

L

30.51mm

M

25.4mm

General Spec

Measurement

Stroke with spring

17.02mm

Stroke without spring

31.75mm

Effective area

21.23cm²

Swept vol. with spring

33.44cm³

Swept vol. without spring

67.35cm³

Max Working Pressure

275-Bar

Dimension

Measurement

A

3.125ins

B

2.125ins

C

1.015ins

D

1.437ins

Dimension

Measurement

E

2.00ins

F

3.625ins

G

0.030ns

H

1.25ins

Dimension

Measurement

J

0.010ins

K

3.852ins

L

1.201ins

M

1.00ins

General Spec

Measurement

Stroke with spring

0.67in

Stroke without spring

1.25in

Effective area

3.29in²

Swept vol. with spring

2.20in³

Swept vol. without spring

4.11in³

Max Working Pressure

4000-PSI
