Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.
Metric Units
Switch to Imperial Units

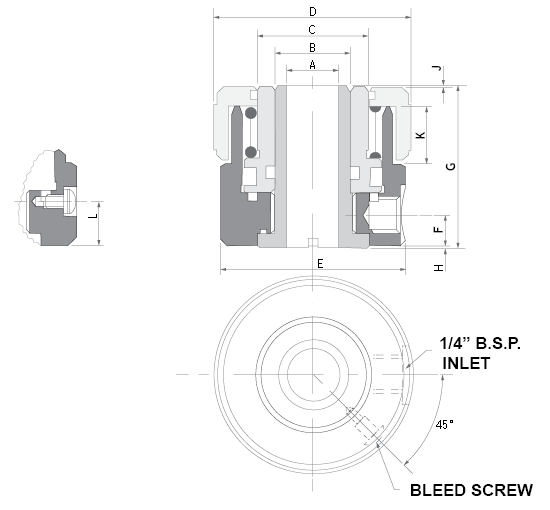

Dimension
Measurement
A
17.45mm
B
25.40mm
C
38.10mm
D
66.67mm
Dimension
Measurement
E
63.50mm
F
10.67mm
G
55.55mm
H
0.25mm
Dimension
Measurement
J
0.76mm
K
19.69mm
L
14.98mm
General Spec
Measurement
Stroke with spring
7.87mm
Stroke without spring
18.03mm
Effective area
12.77cm²
Swept vol. with spring
10.49cm³
Swept vol. without spring
22.94cm³
Max Working Pressure
275-Bar
Dimension
Measurement
A
0.687ins
B
1.00ins
C
1.50ins
D
2.625ins
Dimension
Measurement
E
2.50ins
F
0.420ins
G
2.187ins
H
0.010ins
Dimension
Measurement
J
0.030ins
K
0.775ins
L
0.590ins
General Spec
Measurement
Stroke with spring
0.31in
Stroke without spring
0.71in
Effective area
1.98in²
Swept vol. with spring
0.64in³
Swept vol. without spring
1.40in³
Max Working Pressure
4000-PSI
