Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.
Metric Units
Switch to Imperial Units

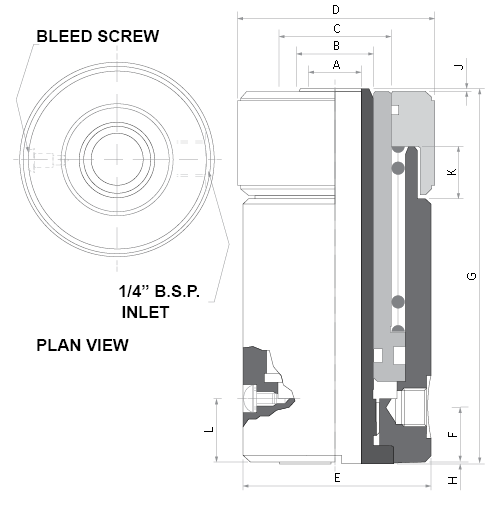

Dimension
Measurement
A
17.45mm
B
25.40mm
C
38.10mm
D
66.67mm
Dimension
Measurement
E
63.50mm
F
19.05mm
G
127.76mm
H
0.25mm
Dimension
Measurement
J
0.76mm
K
17.48mm
L
22.00mm
General Spec
Measurement
Stroke with spring
38.10mm
Stroke without spring
63.50mm
Effective area
12.77cm²
Swept vol. with spring
48.67cm³
Swept vol. without spring
81.12cm³
Max Working Pressure
275-Bar
Dimension
Measurement
A
0.687ins
B
1.00ins
C
1.50ins
D
2.625ins
Dimension
Measurement
E
2.50ins
F
0.750ins
G
5.030ns
H
0.010ins
Dimension
Measurement
J
0.030ins
K
0.688ins
L
0.867ins
General Spec
Measurement
Stroke with spring
1.50in
Stroke without spring
2.50in
Effective area
1.98in²
Swept vol. with spring
2.97in³
Swept vol. without spring
4.95in³
Max Working Pressure
4000-PSI
