Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.
Metric Units
Switch to Imperial Units

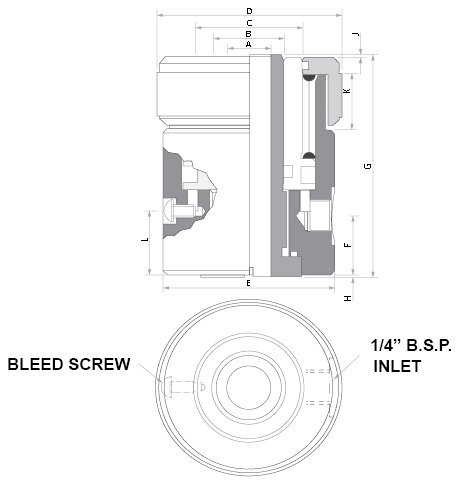

Dimension
Measurement
A
17.45mm
B
25.40mm
C
38.10mm
D
66.67mm
Dimension
Measurement
E
63.50mm
F
22.23mm
G
82.55mm
H
0.25mm
Dimension
Measurement
J
0.76mm
K
19.69mm
L
24.39mm
General Spec
Measurement
Stroke with spring
15.75mm
Stroke without spring
31.24mm
Effective area
12.77cm²
Swept vol. with spring
20.48cm³
Swept vol. without spring
39.98cm³
Max Working Pressure
275-Bar
Dimension
Measurement
A
0.687ins
B
1.00ins
C
1.50ins
D
2.625ins
Dimension
Measurement
E
2.50ins
F
0.875ins
G
3.250ns
H
0.010ins
Dimension
Measurement
J
0.030ins
K
0.775ins
L
0.960ins
General Spec
Measurement
Stroke with spring
0.62in
Stroke without spring
1.23in
Effective area
1.98in²
Swept vol. with spring
1.25in³
Swept vol. without spring
2.44in³
Max Working Pressure
4000-PSI
