7 Ton 73-37-0

Our range of Hollow cylinders provide high force for both push and pull applications. Simplicity in design and high quality material selection makes our hollow cylinders suitable for many years of safe and reliable operation.

Metric Units

Switch to Imperial Units

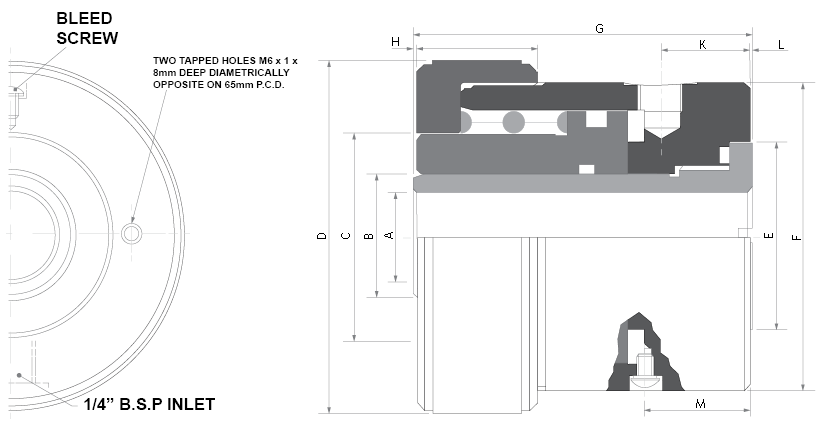

Dimension

Measurement

A

25.78mm

B

36.5mm

C

60.33mm

D

101.6mm

Dimension

Measurement

E

53.98mm

F

88.9mm

G

96.19mm

H

0.762mm

Dimension

Measurement

J

34.925mm

K

25.40mm

L

0.254mm

M

30.48mm

General Spec

Measurement

Stroke with spring

13.46mm

Stroke without spring

29.97mm

Effective area

31.42cm²

Swept vol. with spring

42.29cm³

Swept vol. without spring

94.39cm³

Max Working Pressure

275-Bar

Dimension

Measurement

A

1.015ins

B

1.437ins

C

2.375ins

D

4.000ins

Dimension

Measurement

E

2.125ins

F

3.500ins

G

3.790ns

H

0.030ins

Dimension

Measurement

J

1.375ins

K

1.00ins

L

0.01ins

M

1.20ins

General Spec

Measurement

Stroke with spring

0.53in

Stroke without spring

1.19in

Effective area

4.87in²

Swept vol. with spring

2.58in³

Swept vol. without spring

5.76in³

Max Working Pressure

4000-PSI
